- Size: 0.28*1.18*0.78
- Place of Origin: china
- Brand Name: Laiyang ruizhou machinery
- Model Number: 4H
- Weight: 10.000 kg

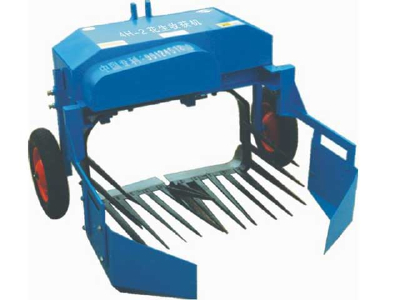

4h - 2 type peanut harvesting machine
4h - 2 type peanut harvesting machine is a new type of peanut harvesting machinery and auxiliary power for small four wheel tractor; using anti parallel quadrilateral mechanism drive and angle opposite to the swing, the frame transverse force balance, stable work; using the new mechanism of mining and separation mechanism, peanut mining and in addition to the soil can be completed at one time. Using vibration mining, small operation resistance, low power consumption; peanut harvest after orderly laid in the field, easy to artificial pickup and delivery. Combined with advanced planting methods and agronomic, can be a harvest of two lines of plastic coated peanuts, compared with the artificial harvest can improve labor productivity 15 times. Due to the vibration to soil harvest losses can be greatly reduced, and rarely cause pod shedding, even with fruit dropping phenomenon, on the surface without recovery, harvest losses reduction of about 10%. Harvest film can not be damaged, attached to the peanut vine, in picking peanuts also are furled, and avoid the mulch on soil pollution.

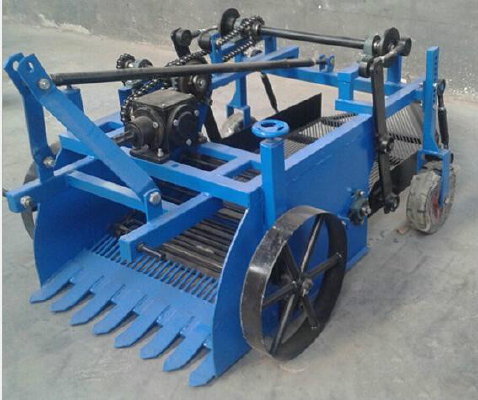

4H-800A peanut harvesting machine
It has the characteristics of high yield and high efficiency, which can effectively solve the problem of the harvesting of peanut growers.
- Size: 0.28*1.18*0.78
- Place of Origin: china
- Brand Name: Laiyang ruizhou machinery
- Model Number: 4H
- Weight: 10.000 kg
4H - 2 type peanut harvester
Auxiliary power: 8.8 13kw tractor;
Productivity: 2.1 - 1.5 mu / h (two rows of peanuts);
The loss rate is less than 1%;
Soil content of peanuts (by weight): < 5%;
The pod breakage rate: less than 1.5%;
Mechanical harvesting rate: < 2%;
Size (length * width * height): 1280 * l180 * 780mm;
800A - 4H type peanut harvester
Matching power (HP) 25
Work efficiency (mu / h) 3 ~ 5
The harvest width (mm) 800
Mining depth (mm = 100)
Buried fruit rate (%) = 3
Broken fruit rate (%) = 1
Traction form three point suspension
Whole weight (KG) 400
